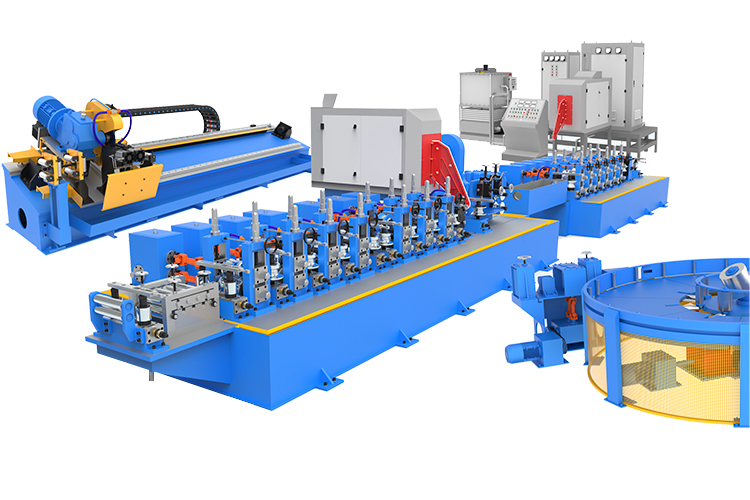

IBC Tote Tube Production Line
IBC Tote Tube Production Line

Revolutionize your IBC manufacturing with our state-of-the-art IBC Tote Tube Production Line, engineered specifically for 1000L IBC tote frames. This fully automated system streamlines the entire tube production process, ensuring precision, efficiency, and consistency.

View More

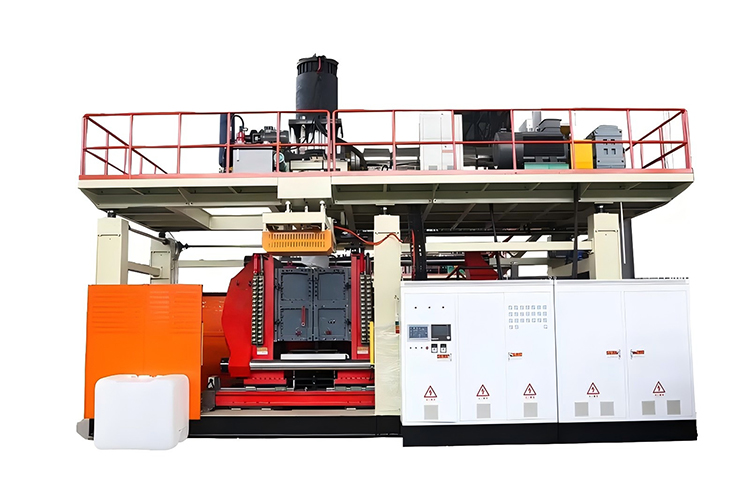

IBC Tank Blow Molding Machine
IBC Tank Blow Molding Machine

Our IBC Tank Blow Molding Machine is specifically designed for the production of high-quality IBC bottle liners. With its adaptable setups and flexible production capacities, this cutting-edge technology meets a wide range of customer needs.

View More
IBC Tote Tube and Accessories

Here at Hwashi, we offer a complete set of accessories for all your IBC tote manufacture requirements. Our wide selection of accessories provides you a whole solution for IBC manufacturing and highlights our sophisticated production lines. We can provide every component required for IBC cage frames, including: horizontal tubes, vertical tubes, metal base, pallet accessories, nameplates, and valves.

Our one-stop solution ensures you get all the equipment and accessories for IBC manufacturing under one roof.

  • IBC Cage Frame Tube

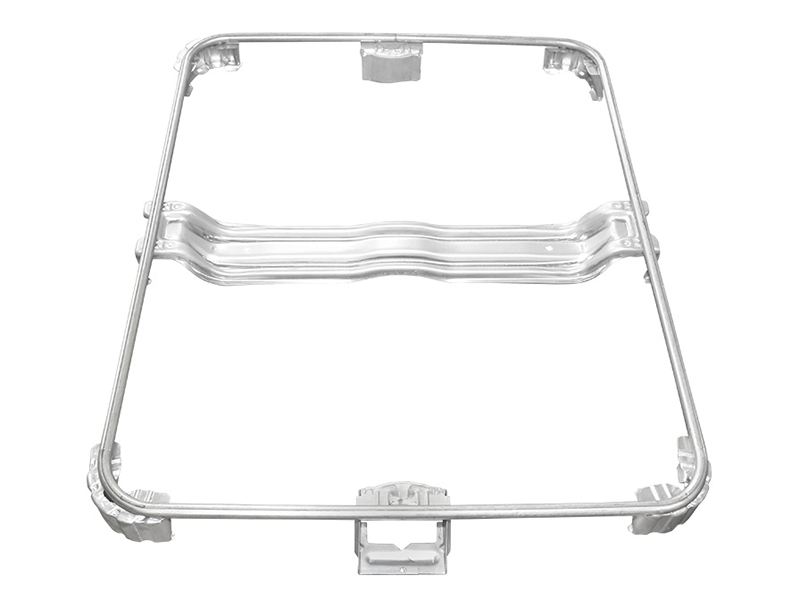

  • IBC Bottom Accessories
  • IBC Tote Valves
  • IBC Tote Caps

We offer two types of frame tube options:

  • Round Tubes: For enhanced structural integrity.
  • Square Tubes: For a modern, robust design.

These tubes are manufactured to meet the highest quality standards, ensuring compatibility and durability for IBC cages.

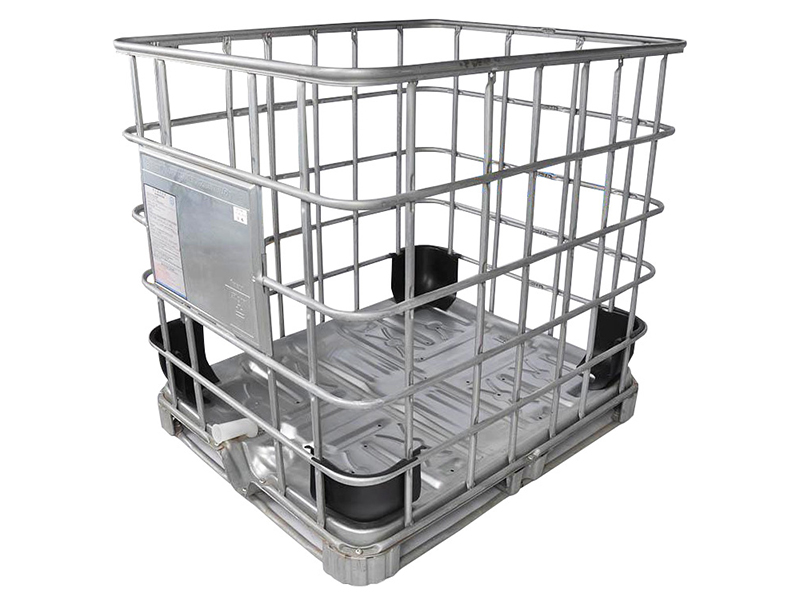

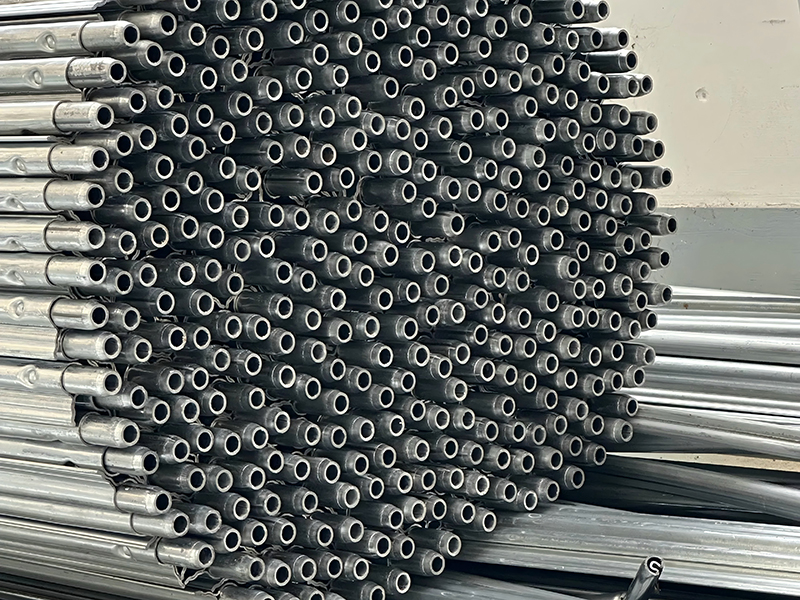

Round Tube IBC Cage Frame

(all accessories listed below are in standard sizes, and we can also customize according to your specific requirements)

Main Accessories

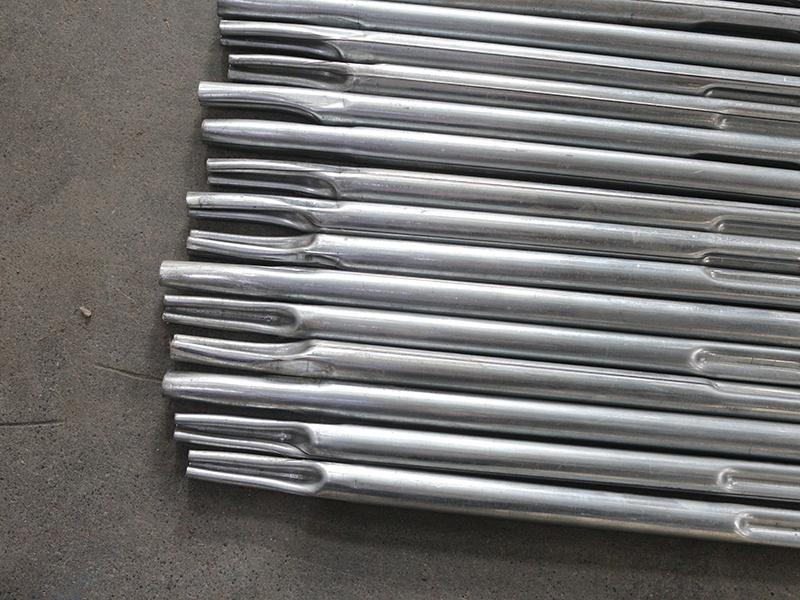

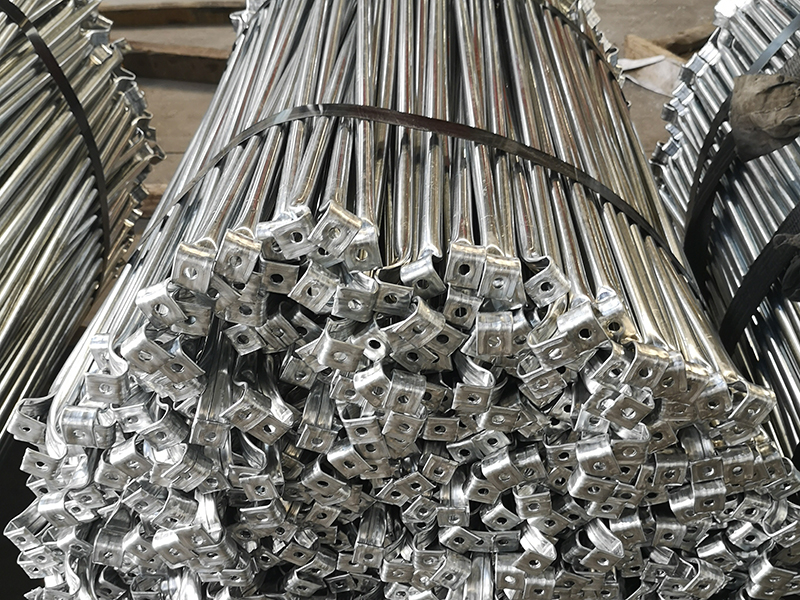

  • Round Vertical Tube
      Specifications
    1. Material: DX51D galvanized steel tube
    2. Diameter: 18mm
    3. Thickness: 1.0mm
    4. Length: 1017mm (can be customized)
    5. Quantity: 20pcs
  • Round Horizontal Tube
      Specifications
    1. Material: DX51D galvanized steel tube
    2. Diameter: 18mm
    3. Thickness: 1.0mm
    4. Length: 4230mm (can be customized)
    5. Quantity: 5pcs or 6pcs
  • Round P Shaped Horizontal Tube
      Specifications
    1. Material: DX51D galvanized steel tube
    2. Diameter: 18mm
    3. Thickness: 1.0mm
    4. Length: 4175mm (can be customized)
    5. Quantity: 1pc

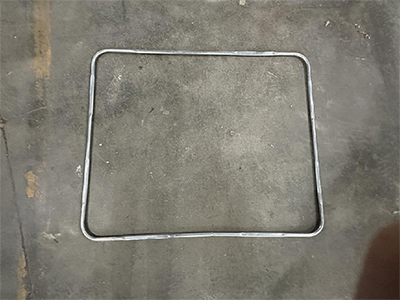

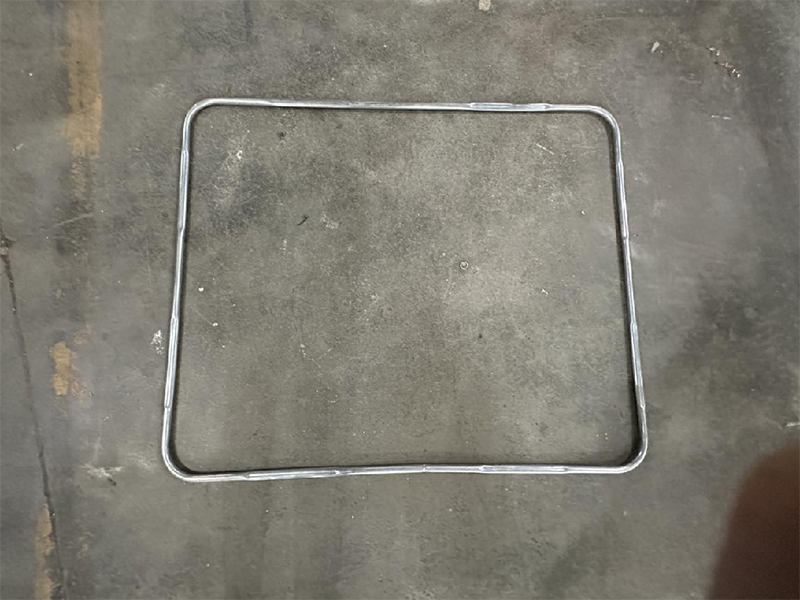

  • Pallet Round Tube
      Specifications
    1. Material: DX51D galvanized steel tube
    2. Diameter: 22mm
    3. Thickness: 1.4mm
    4. Length: 4035mm
    5. Quantity: 1pc

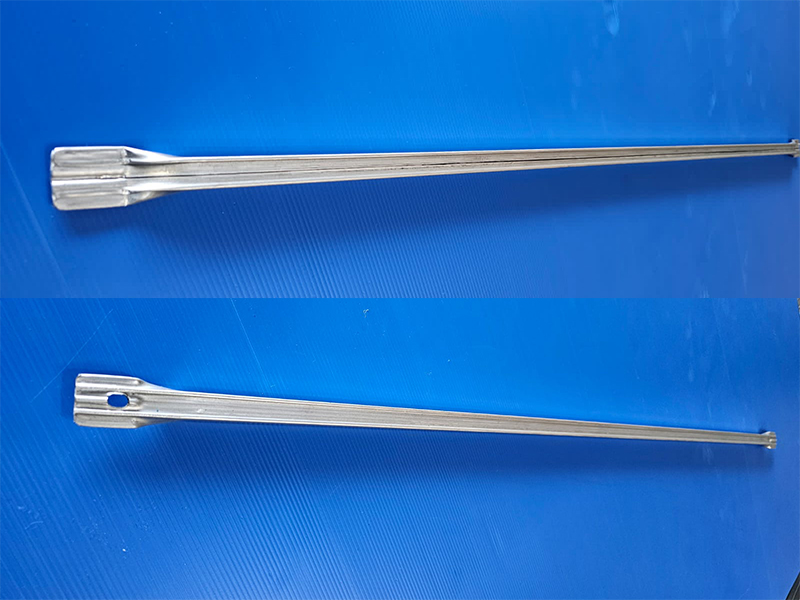

  • Round Tie-Bar Tube
      Specifications
    1. Material: DX51D galvanized steel tube
    2. Diameter: 18mm
    3. Thickness: 1.0mm
    4. Length: 960mm
    5. Quantity: 2pcs

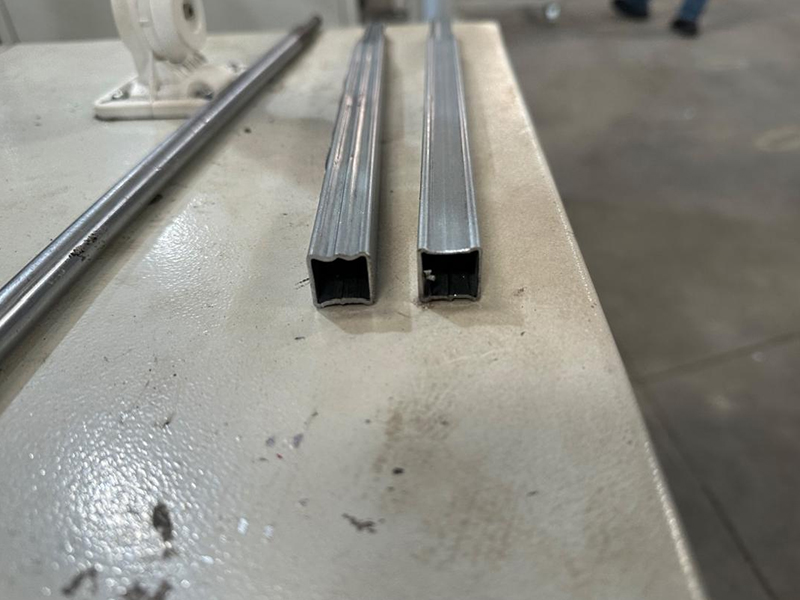

Square Tube IBC Cage Frame

All tube sizes are customizable. We offer tube shrinking, forming, embossing, and perforation (hole punching) services to meet your specific requirements.

Main Accessories

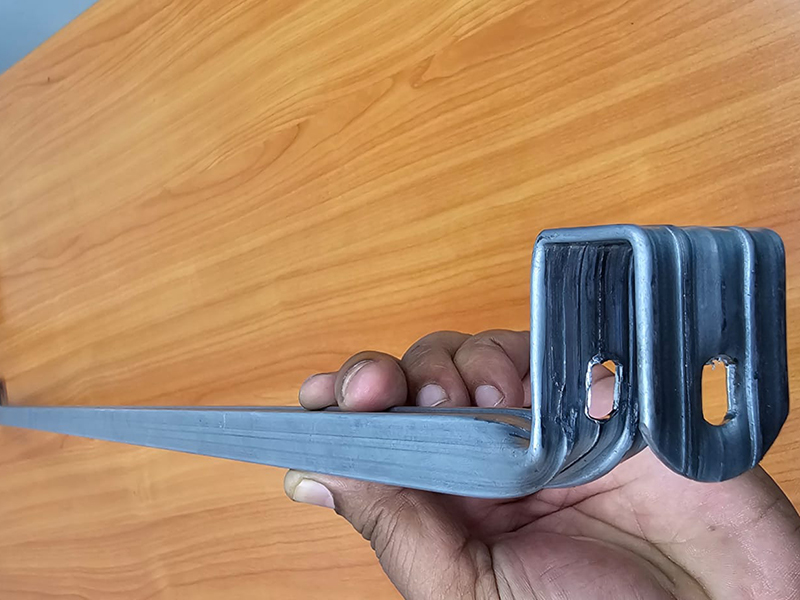

  • Vertical Square Tube (with hole or without hole)
      Specifications
    1. Material: DX51D galvanized steel tube
    2. Size: 16×16×0.85mm
    3. Length: 1035mm (can be customized)
    4. Quantity: 20pcs

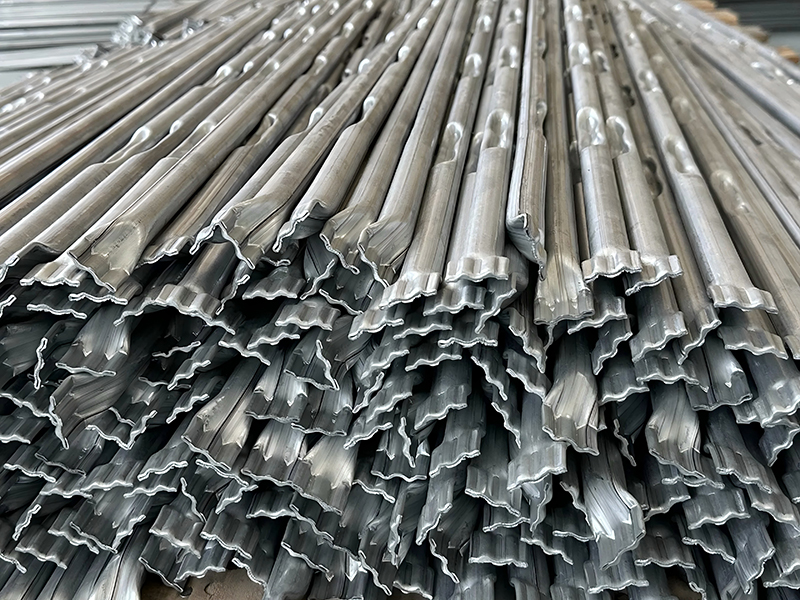

  • Horizontal Square Tube (two star and three star)
      Specifications
    1. Material: DX51D galvanized steel tube
    2. Size: 16×16×0.85mm
    3. Length: 4228mm (can be customized)
    4. Quantity: 5pcs two-star, 1pc three-star
  • Square Tie-Bar Tube
      Specifications
    1. Material: DX51D galvanized steel tube
    2. Size: 16×16×0.85mm
    3. Length: 1008mm
    4. Quantity: 2pcs

(all accessories listed below are in standard sizes, and we can also customize according to your specific requirements)

Main Accessories

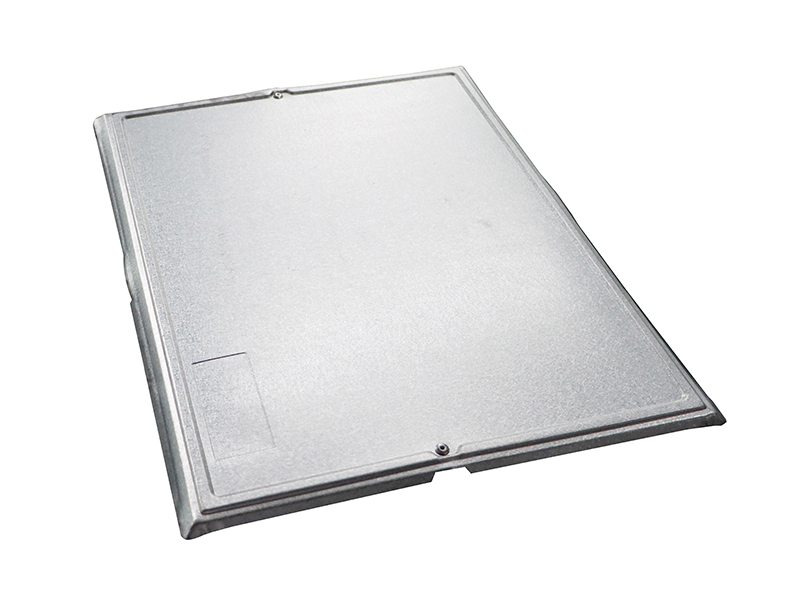

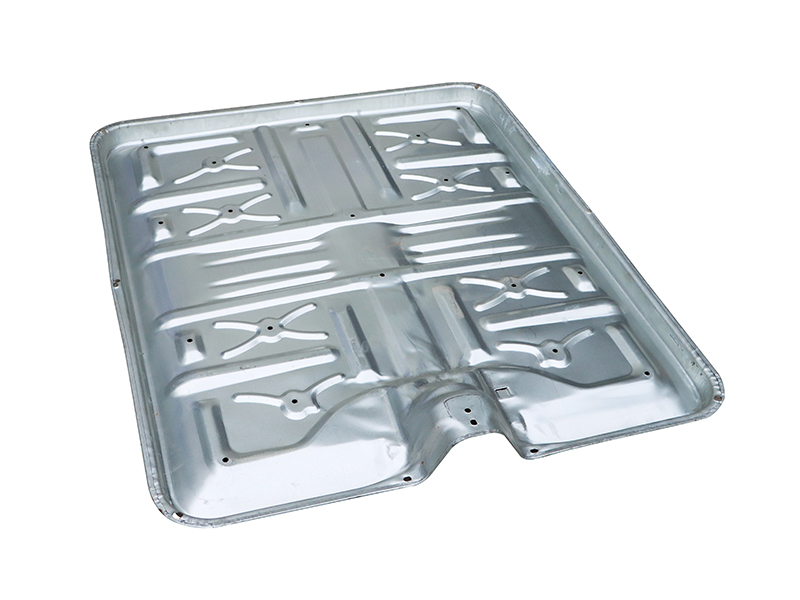

  • Bottom Plate
      Specifications
    1. Material: DX51D galvanized steel
    2. Thickness: 1.0mm
    3. Weight: 10.6kg
    4. Quantity: 1pc

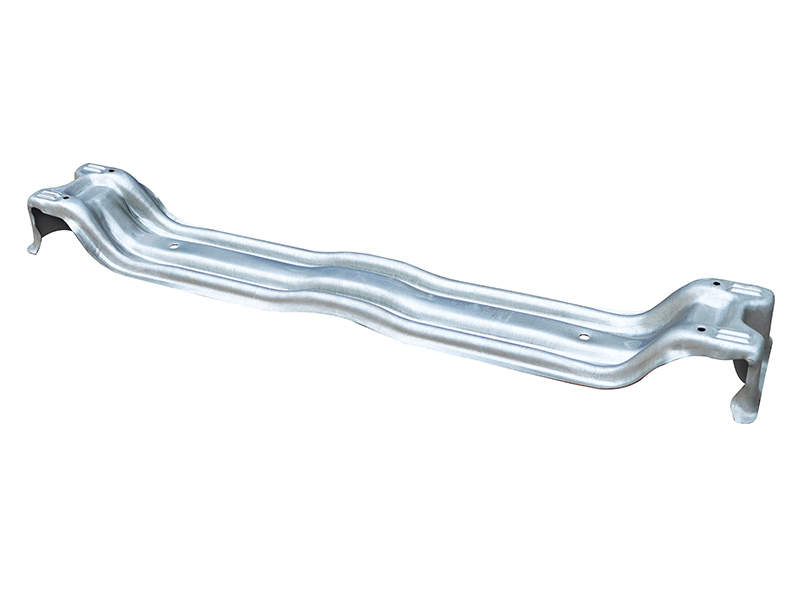

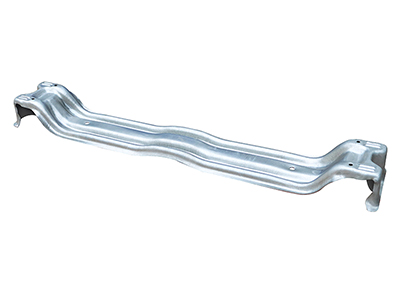

  • Cross Bar
      Specifications
    1. Material: DX51D galvanized steel
    2. Thickness: 1.5mm
    3. Weight: 3.2kg
    4. Quantity: 1pc

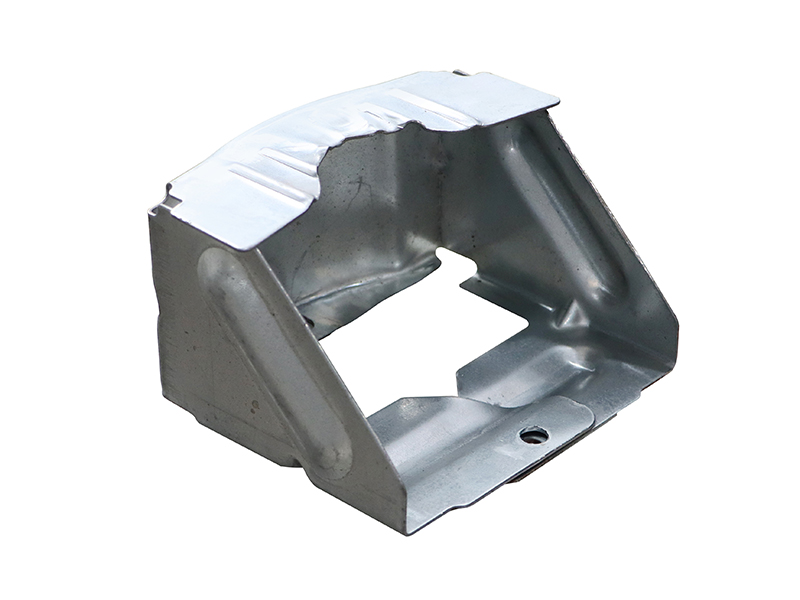

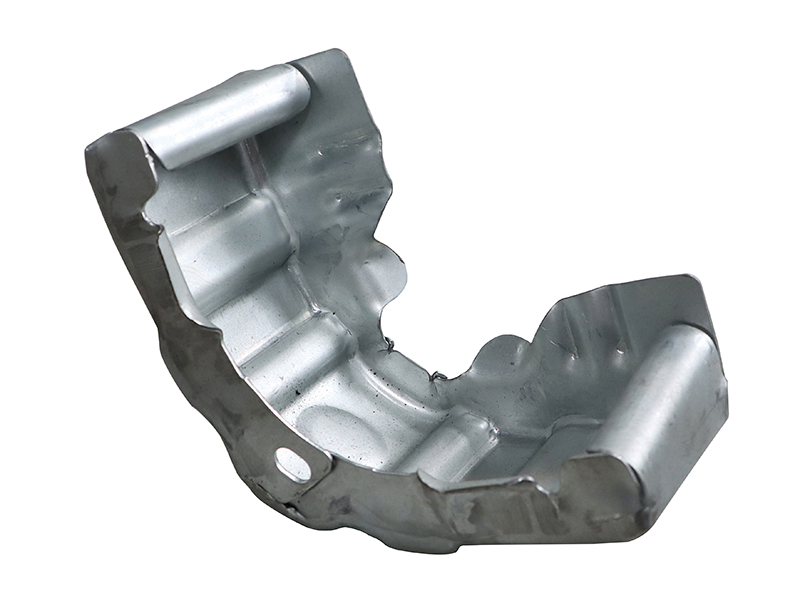

  • Corner Guard
      Specifications
    1. Material: DX51D galvanized steel
    2. Thickness: 1.2mm
    3. Weight: 0.35kg
    4. Quantity: 4pcs
  • Center Foot
      Specifications
    1. Material: DX51D galvanized steel
    2. Thickness: 1.4mm
    3. Weight: 0.45kg
    4. Quantity: 1pc
  • Label Plate
      Specifications
    1. Material: DX51D galvanized steel
    2. Thickness: 0.5mm
    3. Weight: 0.86kg
    4. Quantity: 1pc

Designed to optimize liquid and gas flow control in IBC totes our valves ensures safety and efficiency. Two primary types include:

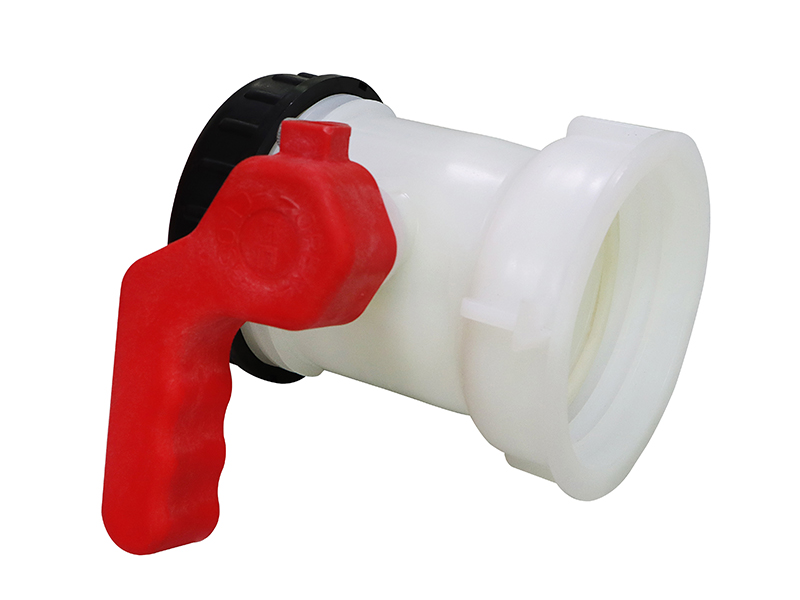

  • IBC Ball Valves: Feature an internal spherical ball or cylindrical body with a precision-drilled hole. When the handle is rotated, the hole aligns with the flow path, allowing liquid to pass through smoothly.

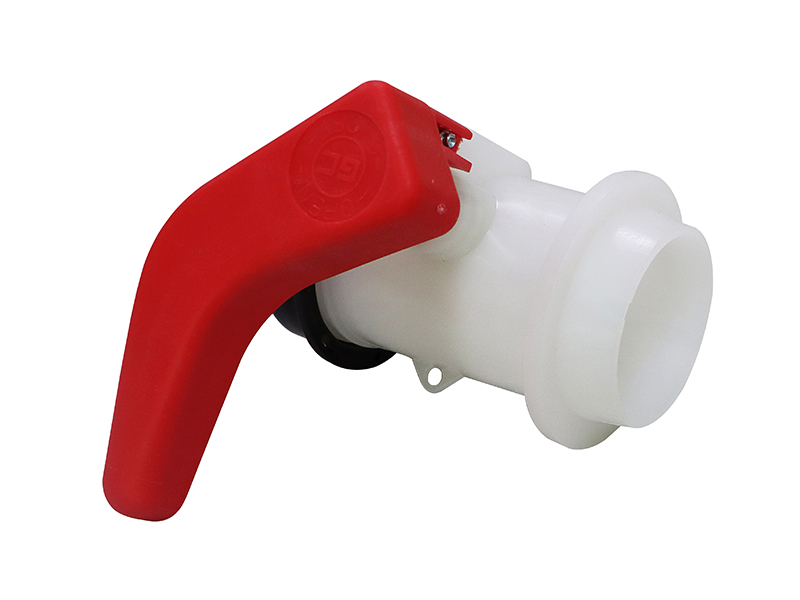

  • IBC Butterfly Valves: Incorporate a valve plate mounted on a central shaft. In the fully closed position, the plate seals off the pipeline entirely. When fully open, the plate turns perpendicular to the flow, enabling efficient passage of liquids or gases.

Both designs ensure reliability, precision, and ease of operation, making them ideal for diverse industrial applications.

Specifications
Item No. Size Type Application
Ball Valves DN40 QMBV-1 62mm whole plastic base Suitable for the IBC tank with the 62mm outlet
QMBV-2 62mm metal aluminum
Ball Valves DN50 QMBV-3 75mm whole plastic base Suitable for the IBC tank with the 75mm outlet
QMBV-4 75mm whole plastic base
QMBV-5 75mm metal aluminum
QMBV-6 75mm metal aluminum
QMBV-7 75mm metal aluminum
Ball Valves DN60 QMBV-8 80mm metal aluminum Suitable for the IBC tank with the 80mm outlet
Butterfly Valves DN40 QMFV-1 62mm whole plastic base Suitable for the IBC tank with the 62mm outlet
QMFV-2 62mm metal aluminum
Butterfly Valves DN50 QMF-3 75mm whole plastic base Suitable for the IBC tank with the 75mm outlet
QMFV-4 75mm metal aluminum
Butterfly Valves DN80 QMFV-5 80mm whole plastic base Suitable for the IBC tank with the 100mm outlet

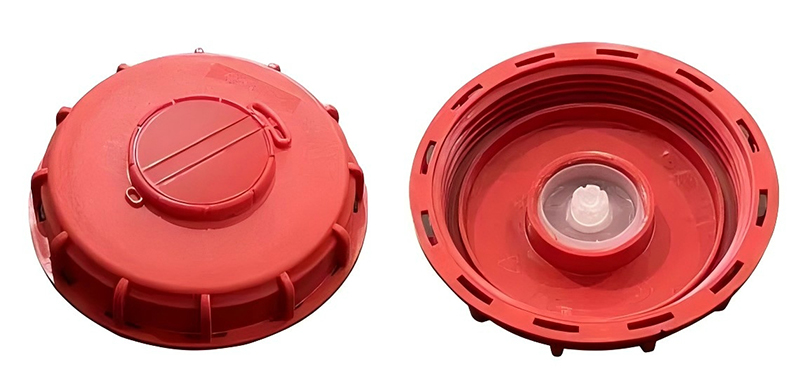

DN150 Breathable Valve Cap (Red)

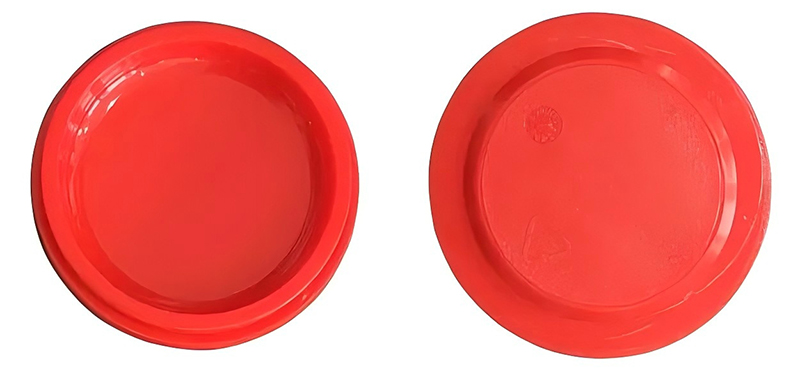

DN150 Common Valve Cap (Red)
  • Durable Leak-Proof Design: Made from premium-quality plastic (PP), IBC valve caps provide a tight and secure seal to effectively prevent leaks. This durability makes them the perfect solution for the storage and transport of liquids.
  • Easy to Use: Featuring a screw cap design, these caps ensure effortless and reliable closure. The spill-proof functionality offers added safety when handling hazardous materials, giving users peace of mind.
  • Customizable Options: To meet diverse customer needs, we offer tailored solutions for IBC valve caps, allowing customization according to specific requirements.
