Stainless Steel Sink Welding Line

Automatic welding solution

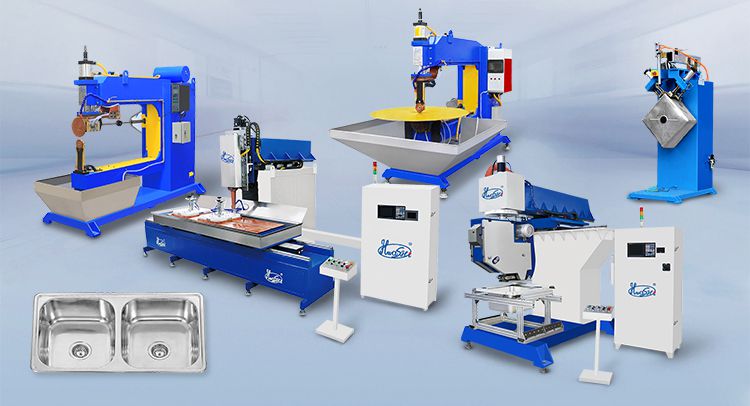

We provide various stainless steel sink welding equipment, including CNC seam welding machine, CNC surface grinding and polishing machine, and manual sink seam welding machine. Our flexibility extends to offering customized solutions, whether it's a fully automatic production line, a semi-automatic production line, or equipment tailored to specific efficiency requirements, according to the preferences and needs of our customers.

Applications

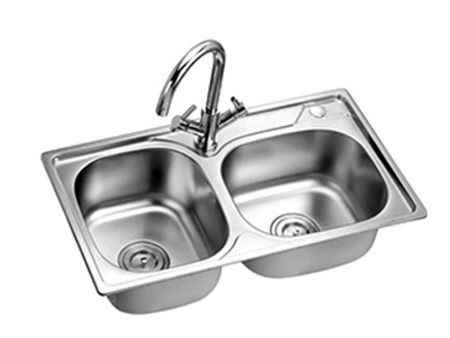

Stainless steel kitchen sinks, industrial sinks, hotel sinks, and more

Specifications of Stainless Steel Sink
Specifications of Stainless Steel Sink
  • Material: stainless steel 304, 201, 312
  • Thickness: 0.6-1.2mm
  • Sink bowl size: rectangular 400x500mm, 350x400mm, round 300mm (can be customized)
  • Worktop size: 600x1200mm, 700x2000mm (can be customized)
Configurations
  • CNC seam welding machine (for stainless steel sink making)

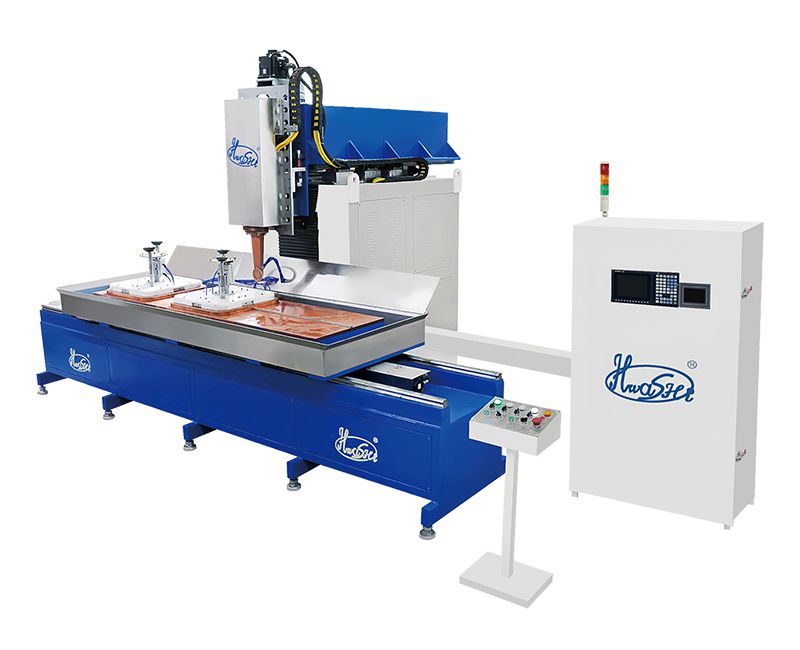

    CNC seam welding machine (for stainless steel sink making)

    Suitable for welding deep drawn stainless steel sink bowl and worktop. The welding can be done within 1 minute.

    Inquiry
  • CNC surface grinding and polishing machine (for seam-welded sink)

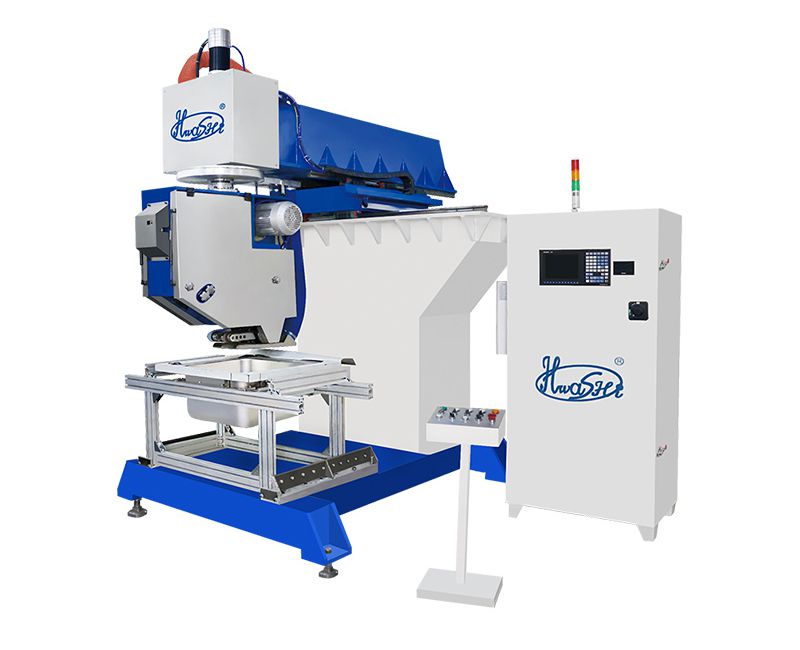

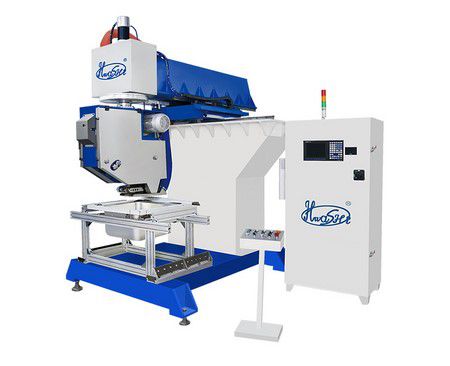

    CNC surface grinding and polishing machine (for seam-welded sink)

    Suitable for grinding and polishing for the welding position, making the weld seam smooth and flush. The grinding and polishing of a sink bowl can be done within 2 minutes.

    Inquiry
  • Manual sink seam welding machine

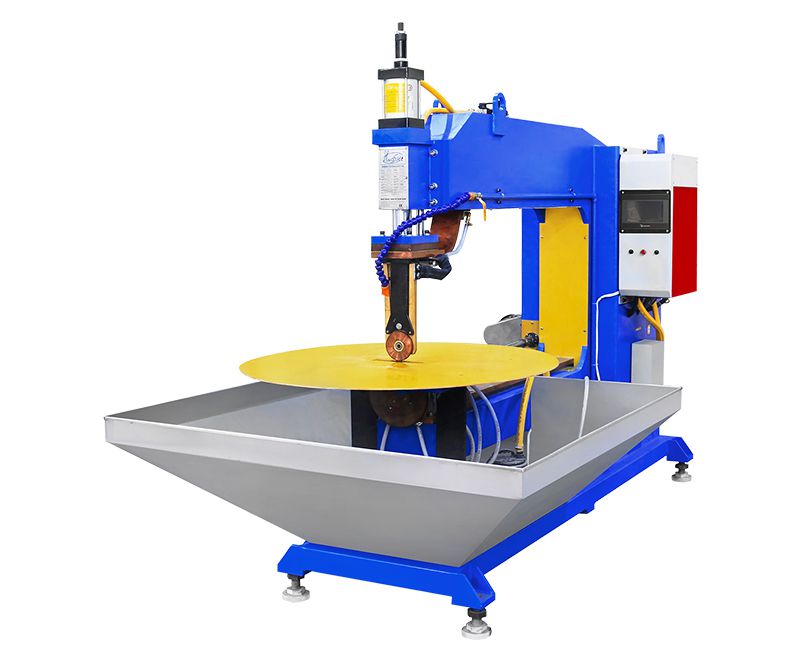

    Manual sink seam welding machine

    Suitable for welding deep drawn stainless steel sink bowl and worktop, featuring manual movement and low cost

    Inquiry

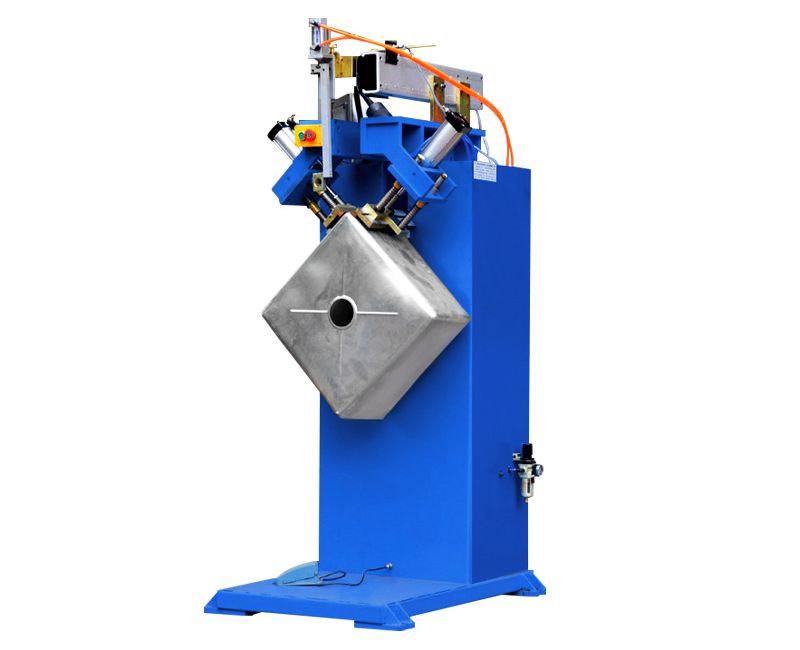

  • Corner seam welder (argon arc welding)
    Corner seam welder (argon arc welding)

    Suitable for argon arc welding of sink bowls

    Inquiry
Features
  • Utilizing the Japan Mitsubishi CNC servo control system ensures a stable operation with precise control over the movement trajectory.
  • The medium-frequency welding power supply control ensures accurate and stable welding, resulting in high-quality outputs.
  • Significantly reduces labor costs by eliminating the need for workers performing welding and grinding jobs.
  • Remarkably enhances both welding and grinding efficiency, resulting in improved overall productivity.
Details
  • Mitsubishi Servo Control System

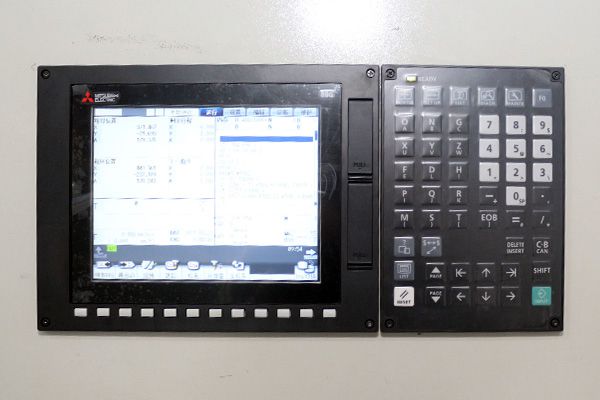

    Mitsubishi Servo Control System

    Designed with the advanced Mitsubishi servo control system, our equipment allows individual control of the X-axis for the die movement, the Y-axis for the longitudinal movement of the welding arm, and the A-axis for 360° rotation of the welding wheel.

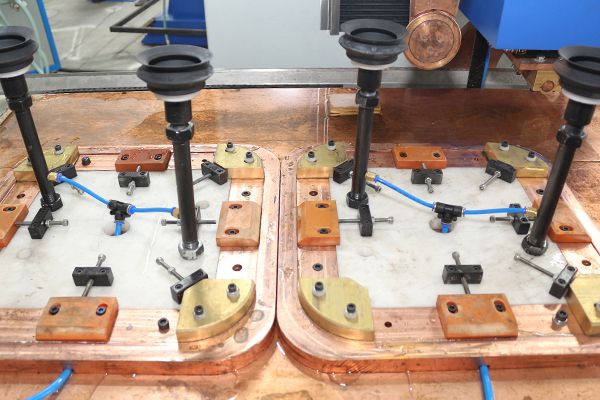

  • Customized Mould
    Customized Mould

    The mould is made of pure copper, POM and vacuum cup. For product with different sizes and radius, changing the mould is required.

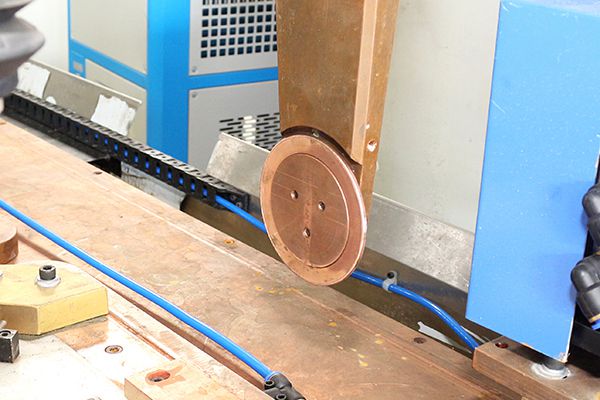

  • Water-cooled Welding Wheel
    Water-cooled Welding Wheel

    The welding wheel is constructed with beryllium cobalt copper. With a diameter of 100mm and a weld width of 3mm, this welding wheel ensures efficient and precise performance.

  • Customized Sanding Belt

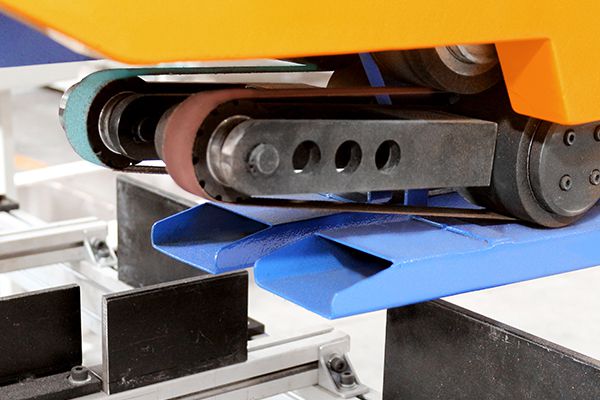

    Customized Sanding Belt

    Two sanding belts are designed, one for coarse sanding, the other for fine grinding or polishing. Each stainless steel sink undergoes coarse sanding and fine polishing process, which ensures high quality surface finish.
